Gearless Elevator Traction Machines

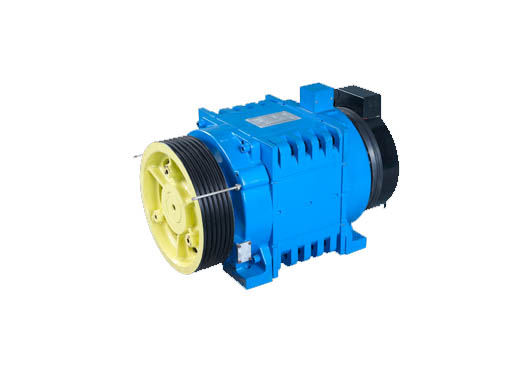

KDS WR-408-100-H
| Capacity | 6 Passenger (408 Kg) |
| Speed | 1.0 m/s |
| Output / Current | 2.4 kW / 7.6 A |
| Sheave | Dia.320mm x Dia.8mm x 4 nos |
KDS WR-544-100-H
| Capacity | 8 Passenger (544 Kg) |
| Speed | 1.0 m/s |
| Output / Current | 3.2 kW / 9.7 A |
| Sheave | Dia.320mm x Dia.8mm x 4 nos |
KDS WR-544-150-H
| Capacity | 8 Passenger (544 Kg) |
| Speed | 1.5 m/s |
| Output / Current | 4.7 kW / 14.5 A |
| Sheave | Dia.320mm x Dia.8mm x 4 nos |
KDS WR-680-100-H
| Capacity | 10 Passenger (680 Kg) |
| Speed | 1.0 m/s |
| Output / Current | 4 kW / 11 A |
| Sheave | Dia.320mm x Dia.8mm x 4 nos |
KDS WR-884-100-H
| Capacity | 13 Passenger (884 Kg) |
| Speed | 1.0 m/s |
| Output / Current | 5.1 kW / 13.5 A |
| Sheave | Dia.320mm x Dia.8mm x 6 nos |
MONA2006P1MPS
| Capacity | 6 Passenger (450 Kg) |
| Speed | 1.0 m/s |
| Output / Current | 3 kW / 9 A |
| Sheave | Dia.320mm x Dia.8mm x 4 nos |
MONA2008P1MPS
| Capacity | 8 Passenger (630 Kg) |
| Speed | 1.0 m/s |
| Output / Current | 4.2 kW / 11 A |
| Sheave | Dia.320mm x Dia.8mm x 5 nos |
MONA2008P1.5MPS
| Capacity | 8 Passenger (630 Kg) |
| Speed | 1.5 m/s |
| Output / Current | 6.4 kW / 16 A |
| Sheave | Dia.320mm x Dia.8mm x 5 nos |
MONA MCK20010P1MPS
| Capacity | 10 Passenger (800 Kg) |
| Speed | 1.0 m/s |
| Output / Current | 5.4 kW / 12 A |
| Sheave | Dia.400mm x Dia.10mm x 5 nos |
MONA MCK20013P1MPS
| Capacity | 13 Passenger (1000 Kg) |
| Speed | 1.0 m/s |
| Output / Current | 6.7 kW / 15 A |
| Sheave | Dia.400mm x Dia.10mm x 5 nos |
MONA MCK20016P1MPS
| Capacity | 16 Passenger (1150 Kg) |
| Speed | 1.0 m/s |
| Output / Current | 7.8 kW / 17 A |
| Sheave | Dia.400mm x Dia.10mm x 5 nos |

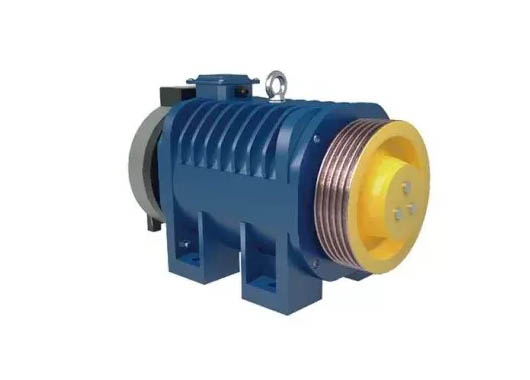

SGIH04_1.38_0.50_200x6x4
| Capacity | 4 Passenger (272 Kg) |
| Speed | 0.5 m/s |
| Output / Current | 1.38 kW / 9.1 A |
| Sheave | Dia.200mm x Dia.6mm x 4 nos |
