Switch Gear & Relay

Switch Gear & Relay

ALLEN BRADLEY RELAY
ALLEN BRADLEY RELAY
TerminalsBlade Style
Contact Ratings7A / 10A
IndicatorON/OFF Flag

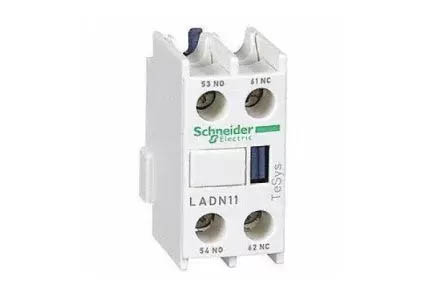

Auxiliary Contactor LADN11
Auxiliary Contactor LADN11
TypeAuxiliary Contact Block
OperationInstantaneous
Pole Contact1 NO + 1 NC
Voltage690V AC
Auxiliary Contactor LADN22
Auxiliary Contactor LADN22
TypeAuxiliary Contact Block
CompatibilityTeSys D LC1D
Contacts2 NO + 2 NC
OperationInstantaneous

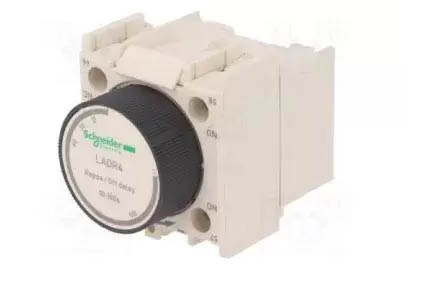

Auxiliary Timer LADR4
Auxiliary Timer LADR4
TypeTime Delay Block
Pole Contact1 NO + 1 NC
Voltage690V AC
ProtectionGG Fuse

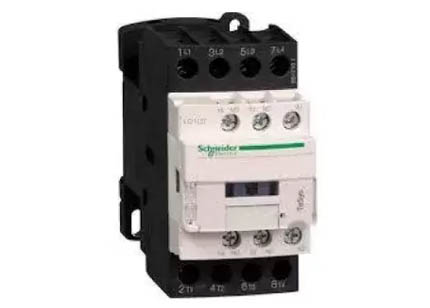

CONTACTORS
CONTACTORS
Voltage TypeAC/DC
Current12–110A / 5.5–55KW
Poles3 & 4
ApplicationMotor Control

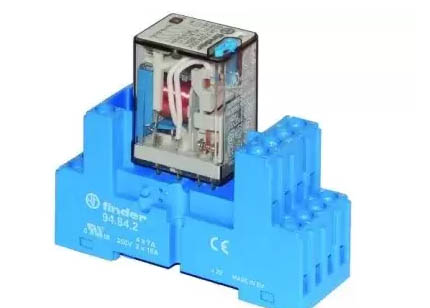

FINDER RELAY 24VDC
FINDER RELAY 24VDC
Supply Voltage250V AC / 7A
Output24VDC
IndicatorLED & Mechanical
Pins14 Plug-In

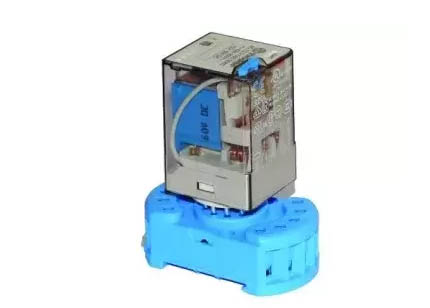

FINDER RELAY 60VDC
FINDER RELAY 60VDC
Coil Voltage60V DC
Supply250V AC, 10A
Pins8 & 11 Plug-In

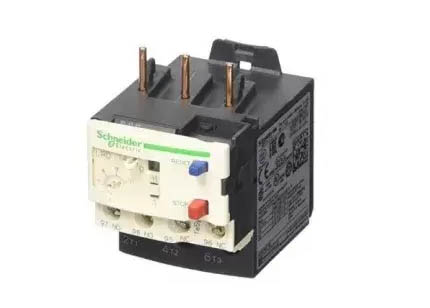

LRD OVERLOAD RELAY
LRD OVERLOAD RELAY
TypeThermal Overload Relay
ApplicationMotor Protection
CompatibilityLC1D09–LC1D32
NetworkAC/DC
